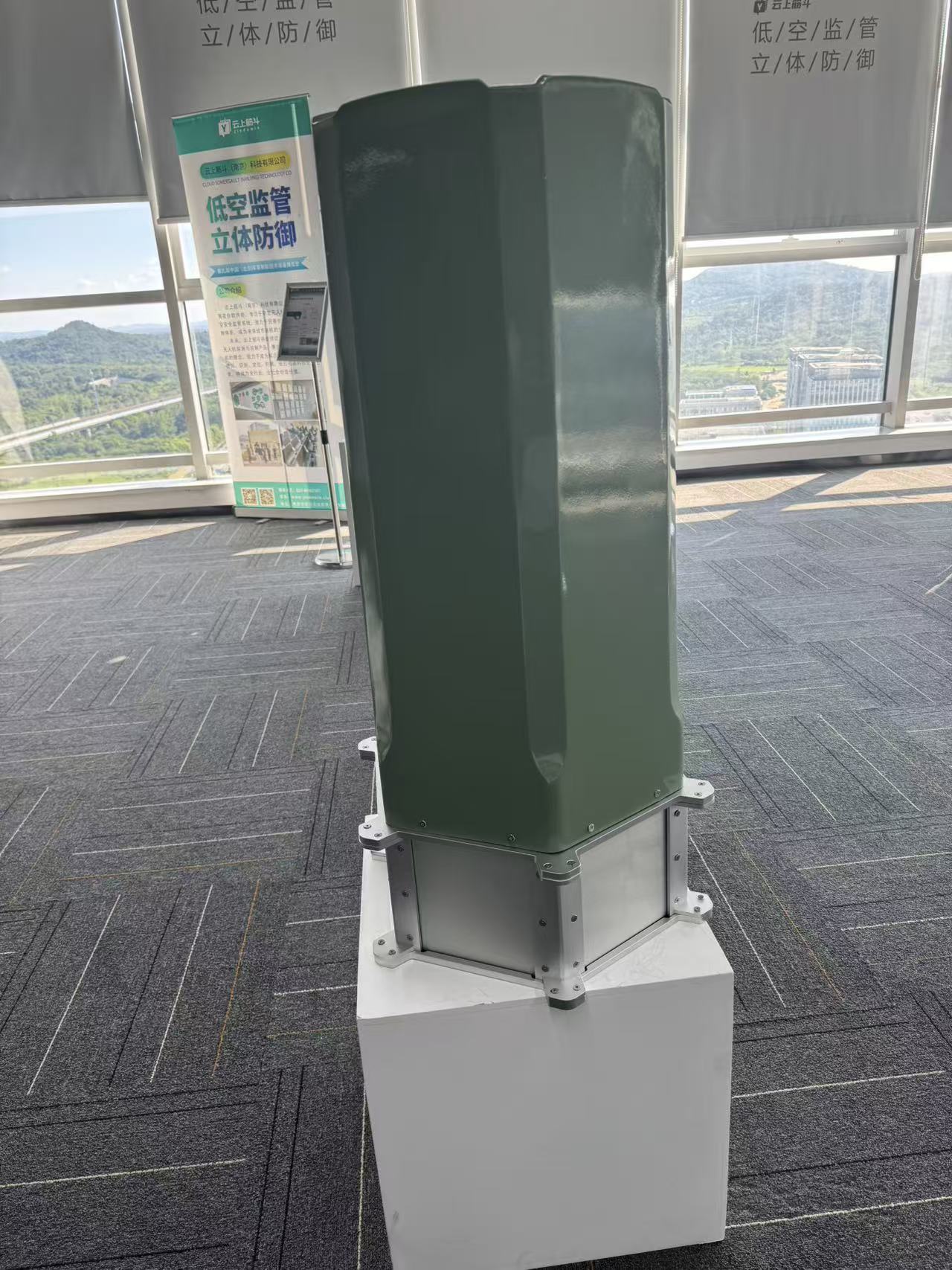

12km Range 100MHz Anti UAV Equipment Drone Radio Frequency Jammer Scalable

Model Number : JDY-2000

Certification : Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Place of Origin : China

MOQ : 1

Price : $ 62820

Payment Terms : T/T,D/A,L/C,D/P,Western Union,MoneyGram

Supply Ability : 200 per month

Delivery Time : 30 days

Packaging Details : Flight Case

Product Name : Fixed Uav Detection, Jamming & Deception System

Core Tech : Passive Detection, 4-Sector Strike, Gnss Deception

Detection Freq : 300MHz~6000MHz; 100MHz~6000MHz (Partial)

Key Detection Bands : 2.4G/5.8g/400MHz/800MHz/900MHz/1.4GHz

Detection Dist : 1~5km; 1~12km (Jdy-2000p)

Jamming Bands : 2.4G/5.2g/5.8g/GPS/Bds/Glonass/Galileo

Jamming Dist : 1~3km; 1~5km (Jdy-2000p)

Deception Signals : GPS/Bds/Glonass/Galileo

Deception Dist : 500~1000m

Transmission Power : 500W; ≤2000W (Jdy-2000p Total)

Power Supply : AC220V→DC24V; DC27V (Partial)

Weight : ≤15kg; ≤50kg (Jdy-2000p)

Operating Temp : -35ºC~50ºC (Built-in Radiator)

Protection Level : IP66

Positioning Accuracy : ≤10m (Uav); ≤5m (Operator)

Contact Now

The Fixed Detection, Interference, and Deception Drone Defense System (FDID)

The Fixed Detection, Interference, and Deception Drone Defense System (FDID) is a modular anti-drone system, with each functional module working together to form a complete defense system.

System Modules
Detection Module
  • Covering multiple frequency bands, it captures drone control and image transmission signals in real time.
  • High-sensitivity antennas enable simultaneous detection of multiple drones.
Interference Module
  • Supports directional and omnidirectional jamming, covering common frequency bands such as 900MHz, 2.4GHz, and 5.8GHz.
  • With a response time of less than 1 second, it instantly disconnects the drone from the remote controller.
Deception Module
  • Uses fake navigation signals (GPS/Beidou/GLONASS/Galileo) to force a drone to return or make an emergency landing.
  • Safe and controllable, it does not affect other navigation systems.
Control Platform
  • Remote centralized management and support for multi-site deployment.
  • Generates data reports for easy traceability and analysis.
Features and Advantages
  • Modular and Scalable: Modules can be flexibly added or removed based on user needs.
  • Highly Adaptable: Suitable for industrial parks, urban centers, and border crossings.
  • Easy Maintenance: Hardware is easily replaceable and software is upgradeable.

The system's modular collaboration creates a comprehensive defense chain encompassing "detection - jamming - deception - management."

Product Name Fixed UAV Detection, Jamming & Deception System
Core Technology Passive Detection, Four-Sector Strike, GNSS Spoofing
Detection Frequency 300MHz-6000MHz; 100MHz-6000MHz (select models)
Key Detection Frequency Bands 2.4GHz / 5.8GHz / 400MHz / 800MHz / 900MHz / 1.4GHz
Detection Range 1-5km; 1-12km (JDY-2000p)
Jamming Frequency Bands 2.4GHz / 5.2GHz / 5.8GHz / GPS / Beidou / Glonass / Galileo
Jamming Range 1-3km; 1-5km (JDY-2000p)
Spoofing Signals GPS / Beidou / Glonass / Galileo
Spoofing Range 500-1000m
Transmit Power 500W; ≤2000W (JDY-2000p total power)
Power Supply AC220V → DC24V; DC27V (select models)
Weight ≤15kg; ≤50kg (JDY-2000p)
Operating Temperature -35°C to +50°C (built-in heat sink)
Protection Rating IP66
Positioning Accuracy ≤10m (UAV); ≤5m (operator)
